Product selling point

1: Small size

2: Widely used

3: Simple to use

4: The output is adjustable

5: The higher the input voltage, the stronger the load capacity

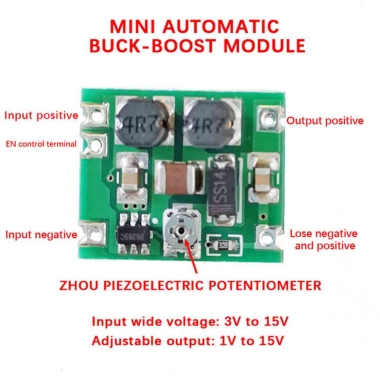

1: DC-DC automatic buck-boost regulator board

2: Wide input voltage: DC3V-15V

3: Output voltage: DC 1V to 15V adjustable

4: Output: current 700ma (Max) or power 5W (Max), the limit is when one of the current and power conditions reaches the maximum; the higher the input voltage, the stronger the load capacity.

5: Quiescent current: The typical value is about 1mA. The higher the output voltage, the greater the quiescent current.

6: Efficiency: up to 85%

7: EN enable control terminal, which needs to be connected to IN+ module to have output.

8: Weight: 3g

9: Size: 18*15*4mm

Package included:

1 x DC-DC Buck-boost Converter 3V-15V to 1V-15V 5V 6V 9V 12V 700ma 5W Adjustable Step UP Step Down Power Module Voltage Regulator
