Product Description

DC 12V 4 Wire PWM Fan Temperature Control Speed Controller Governor Regulator for PC Computer CPU Fan Cooler Alarm Module BoardDescription:The controller only controls the speed of the four line standard specification Intel PWM fan, do not turn off the fan. With full digital control, accurate temperature setting and precise control. It integrates manual speed regulation and automatic temperature control and speed regulation function. Manual speed control from 10%-100%, each 5% is a gear. Automatic temperature control speed from 30 degrees Celsius, there are 49 kinds of temperature zone combination. It supports three line to four line control, setting parameters automatically save.

Parameter	Value
Operating voltage	DC12V can work in 8-18V range
Fan interface	2510-4P lacks 1 bends (special interface for computer 4P fan
Consumption current	No more than 20mA
Fan current	Less than 3A
Drive output range	10% -100
Operating temperature	-10 Celsius to 60 Celsius
Temperature probe parameters	NTC 50K B=3950
Probe temperature	Small black head 120 degrees Ring probe 110 Celsius
Board size	34mm19mm11mm (excluding extended interface) Fan interface extends 8mm
Setting parameters default factory	Low speed 20%. Acceleration temperature 30 Celsius. Acceleration width 5 Celsius. Do not shut down the output. At this temperature setting, holding the probe with the palm of the hand will accelerate in a few minutes. If the probe is clamped into the armpit, it will reach full speed in 2 minutes.

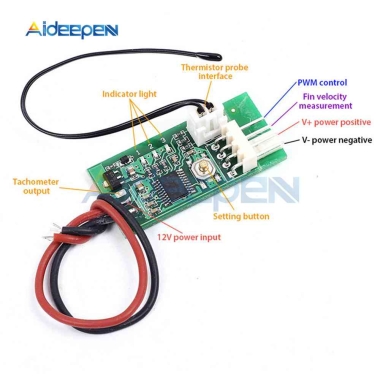

3. Components:1>. Input line: red black power line is only welding 12V positive and negative power cord, as ageneral use. The three wire connector is equipped with a 2510-3P plug, which is used tomeasure the speed of some main board three wire fan ports. Large 4P interface facilitatespower acquisition from chassis.2>. temperature probe: small black line's head is short, low heat capacity. It is suitable fortesting narrow space and air temperature, and the response is relatively fast. The ring probeis enclosed inside a ring metal head with a diameter of 4.2mm. It is suitable for mounting onthe radiator or other heating object surface with screws.4. Manual automatic integration control:1>. Manual control without temperature probe. Click / double-click (double-click speed not toofast) button up / down gear. Each shift continues after 20 seconds, and the gear isautomatically stored. The No. 2 indicator flashes rapidly in 20 seconds (when the temperaturecontrol is invalid). When the flash is stopped, it indicates that the file has been stored. The 3 /1 indicator light is always on when you can not continue to increase / not continue to reducethe position.2>. When the temperature probe is installed, the manual speed is used as the initial lowspeed (bottom line speed). When the temperature exceeds the accelerating temperature, thefan speed accelerates smoothly with the increase of temperature.When the temperature reaches and exceeds the sum of the acceleration temperature and theacceleration width (full speed temperature), the fan runs at full speed.Set the acceleration temperature and acceleration width parameters as shown in theschematic diagram below. The number 123 represents the indicator light on the board (red)
and the (white) state is displayed in binary order:
