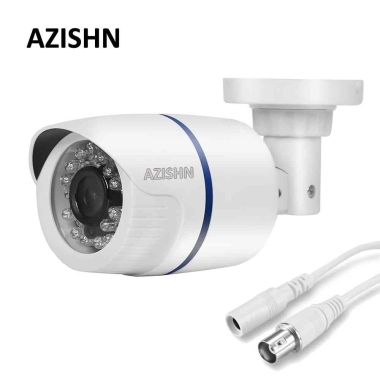

    AZISHN Security Camera 800TVL 1000TVL CMOS Sensor 24 IR Leds 3.6mm Lens Waterproof Bullet CCTV Video Surveillance White Camera|S  632848867337

    Rewards 31 reward points
    Price:
    $31.30

    Ship to

    Estimated Delivery Time: 9-25 days
    Fulfilled by Officematics HZ2 DC
    Quantity:

    Related Products

    • Description
    • Customer Reviews(0)
    Item specifics
    • Brand Name AZISHN
    • Type Analog Camera
    • Supported Operating Systems No
    • High Definition 720P(HD)
    • Lens (mm) 3.6mm
    • Style Bullet Camera
    • Certification CE
    • Connectivity Closed System/CCTV Wired
    • Origin CN(Origin)
    • Installation Ceiling
    • Wall Bracket Side
    • Power Consumption(W) 3W
    • Color white
    • Minimum Illumination(Lux) IR ON 0 lux
    • Sensor CMOS
    • Special Features Waterproof / Weatherproof
    • Storage None
    • Video Compression Format H.264
    • Power Supply Normal
    • IR Distance(m) 10M~20M
    • is_customized Yes
    • Power Supply(V) 12V
    • Model Number AZ00121
    • Viewing Angle 90°
    • Technology Infrared
    • Dimensions (L x W x D)(mm) 18.4*5.5CM
    • Network Interface None
    • Audio Output Other
    • Material ABS Plastic Material ( Waterproof/Weatherproof )
    • Ships From china
    Product Description







    Mechanical IR-Cut Filter

    The camera has a built-in mechanical IR-cut filter placed in front of the image sensor to filter out infrared light in the daytime,

    producing better color reproduction. At nighttime or when the built-in light sensor detects low-light conditions,IR-cut filter is

    automatically removed to achieve better light sensitivity.



    What is an IR Cut Filter?

    An Automatic IR Mechanical Cut Filter blocks infrared light but allows colors visible to the naked eye to pass through. During low/no

    light conditions, the IR Cut Filter moves away from the lens to let in100% of the infrared light for maximum night vision performance.

    This results in the camera image changing to Black and White for better image quality.

    NOTE: Not all Day/Night Cameras have an Auto IR Cut filter.

     11

    60W58PICyRV_10242 TB2VzhVbbBkpuFjy1zkXXbSpFXa_!!2170978258-11-1







    11-2

    Features:

    ·         100% Brand New.

              CMOS 800TVL/1000TVL with IR-CUT

    ·         Color: White

    ·         Crisp, clear state of the art imaging

    ·         Built-in infrared LED, may work under zero degree of illumination environment

    ·        24pcs IR LEDS  IR illuminators view

    ·         Indoor/Outdoor  for Day / Night

    ·         Back light compensation

    Horizontal Resolution

    800TVL/1000TVL ( can choice)

    Pick-up Device

    1/4'' CMOS with IR-CUT

    Scanning Area

    4.9mm(H)×3.7mm(V)

    TV System

    PAL/NTSC

    Minimum Illumination

    IR  ON  0  lux

    S/N Ratio

    More than 48dB

    Auto Electronic Shutter

    PAL:1/50s-1/100.000s

    Gamma Characteristic

    0.45

    Auto Gain Control

    Auto

    Auto White Balance

    Auto

    Back Light Compensation

    Auto

    Synchronous System

    Internal Synchronization

    Lens Mount

    Standard 3.6mm

    Video Output

    1.0vp-p.75Ω,BNG Connector

    IR Distance

    (24pcs IR LEDS) 10~20 Meters

    Protection Rate

    ABS Plastic Material ( Waterproof/Weatherproof )

    Power Supply

    DC 12V ±10%

    Temperatur

    -15  ~  +50  C

    Note: package not with power supply,if you need it , please order this link
