Sensor Size	3MP DC 12V

Description
Customer Reviews(0)

Item specifics

Brand Name REVOTECH
Origin CN(Origin)
High Definition 3.0 Megapixels
Supported Operating Systems Windows 10 Windows Vista Windows 8 Windows 7 Windows 98 windows xp
Lens (mm) 8mm 6mm 3.6mm 2.8mm
Style Dome Camera
Connectivity IP/Network Wired
Installation Ceiling
Minimum Illumination(Lux) NA
Megapixels 3MP
Storage None
Video Compression Format H.264 H.265
IR Distance(m) 10-20m
Certification CE
Dimensions (L x W x D)(mm) 10.5 x 10.5 x 9.5cm
Color white
Alarm Action Email Photo
is_customized Yes
Model Number I3006-FHW
Supported Mobile Systems iOS Android
Smart home platform NONE
Power Supply(V) POE 48V/ DC 12V
Audio Output None
Power Consumption(W) NA
Sensor CMOS
Power Supply With POE
Type CCTV Camera
Model IP Camera
LENS 2.8mm 3.6mm 6mm 8mm
TV Format PAL/NTSC
LED 3 Array LED
White Balance Auto
Resolution 3MP
IR Cut Built-In
Place of Origin Guangdong China (Mainland)
Color White
Audio Built-In

Product Description

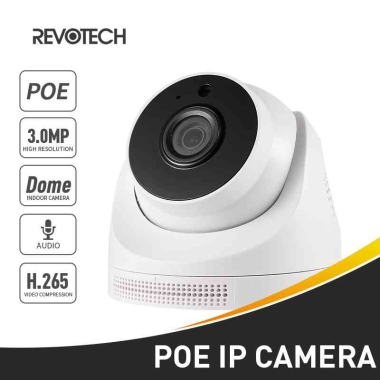

Audio POE H.265 3MP 1296P HD IP Camera LED IR Night Vision Dome Security Indoor P2P CCTV System Video Surveillance Cam System

-High Resolution3.0 Megapixe 1/3'' CMOS Sensor
- 3MP 2304*1296P resolution
- Support H.265 encode, compare with H.264, transit same quality image only need half of the bandwidth; Record same quality image only need half of the storage;
- Also support H.264 encode, so it can be compatible with both H.264 and H.265 device.
- Support POE, reduce the trouble of cable arrangement.
- Have auxiliary power supply, can use like a Non-POE IP camera.
- Support iphone, Android smart phone
- P2P Cloud Function
- Support Motion detection, Email Alarm function.
- Support Multi-Language.
- Day & Night vision
- Net weight: 0.2KG
- ABS Plastic Material Shell
- Simple Operation and Easy to Use
Note:1. IP camera will create more heat and the case of this camera is small, so after you operate the camera for a while, you will feel the camera is hot. And do not worry, it is normal and safe, hope you can understand.2. This camera default 3MP & H.265, if your NVR do not support 3MP or H.265, you can change our camera into 1080P (2MP) and H.264.3."POE 48V" Option mean the camera support POE, can power from POE, need to connect with a 802.3AF Standard 48V POE Switch (It have auxiliary power supply connector, can be used like a Non-POE IP camera).4."DC 12V" Option mean the camera is regular version, do not support POE and it can only with with a 12V regular power.

Camera

Model: I3006-FHW

Resolution:2304 x 1296P 3.0 mega Pixels camera

Sensor: FH8852 + GC2053

Min illumination: 0.1Lux @(F1.2,AGC ON)

Frame rate: 20fps

Shutter: 1/25 seconds -1/100,000 seconds

Lens: 2.8mm, 3.6mm, 6mm, 8mm

Lens interface type: M12

Day and night conversion: Auto

Digital noise reduction: 3D Digital noise reduction

Compression Format: H.264 / H.265

Compression rate output: 128 Kbps~8Mbps

Storage: NVR or Computer

IP address: Dynamic (Default) / Static

Smart alarm: Motion detection, Email alarm, CMS alarm

Support protocol: HTTP, TCP/IP, ICMP.RTSP, RTP, RTCP, SMTP, DHCP, DNS, PPPoE, NTP

Input protocol: The standard ONVIF

General function: A key recovery, dual stream, password protection, video hiding

Ethernet: 10M / 100M mbps Ethernet (RJ-45)

Audio

Voltage: Linear power supply (transformer) DC 9-12 V

Electric current: 20MA

Frequency range: 100-100 KHZ

Output impedance: 600 ohm non equilibrium

Connecting mode: Terminal

Monitor range: 5-20 square meters

Sensitivity: -36dB

Signal-Noise Ratio: 58dB

General

Operating Temperature: -25°C~60°C

Operating Humidity: 10%~90%

Power Supply:

POE 48V option support POE 48V(802.3af) & DC12V/2A

DC 12V option support DC12V/2A

Power Dissipation: 15W MAX

Infrared lamp: 3 Array LED

Night Vison Distance: 10-20m

Dimension(mm): 11 x 11 x 10.2cm

Weight: 0.3kg

Package Content

1 x Camera
1 x User Manaul

1 x Screws Set

Power supply Note:

1.POE 48V version can power from POE, need to connect with a802.3AF Standard 48V POE Switch. if you need one, please click the picture to buy.

2.Both POE 48V version and DC 12V version have not include power adapter, if you need one, please click the picture to buy.

Daytime + Indoor

Night with light + Indoor

Browser View:

CMS View

How to download and use the CMS? Please click here to know it.

Support Multi-Language.

App View

How to download and use the APP? Please click here to know it.

NOTE:System 1 also can save the video by CMS software, but it need to set and open the computer all the time. It is not convenient, so we suggest your to use system 2 to save the video. It is stable and reliable.
