Description:

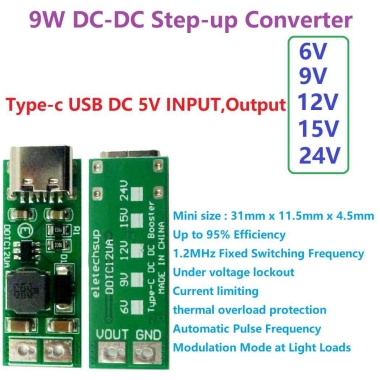

DC DC Boost Converter Module working frequency 1.2MHZ.

Up to 95% Efficiency (usually is 84%-92%)

Quiescent Current (PFM) : 100uA.
Quiescent Current (PWM): 1.6mA

Automatic Pulse Frequency Modulation Mode at Light Loads

Under voltage lockout,Current limiting,Thermal overload protection

Operating temperature range : -40~+85 Degrees Celsius

Storage temperature range : -65~+150 Degrees Celsius

Size : 31mm x 11.5mm x 4.5mm
Weight :  2g


Output 6V :
Input voltage DC 4.5 ~ 5.5V,output DC 6V±3%
Maximum output : 6V/1500MA
Input DC 5V 1.32A,Output 6V 1.00A;
Input DC 5V 1.63A,Output 6V 1.20A;
Input DC 5V 2.00A,Output 6V 1.50A;


Output 9V :
Input voltage DC 4.5 ~ 5.5V,output DC 9V±3%
Maximum output : 9V/1000MA(See the table below for details)
Input DC 5V 1.00A,Output 9V 0.52A;
Input DC 5V 1.50A,Output 9V 0.76A;
Input DC 5V 2.00A,Output 9V 1.00A;


Output 12V :
Input voltage DC 4.5 ~ 5.5V,output DC 12V±3%
Maximum output : 12V/750MA(See the table below for details)
Input DC 5V 1.00A,Output 12V 0.39A;
Input DC 5V 1.50A,Output 12V 0.57A;
Input DC 5V 2.00A,Output 12V 0.75A;

Output 15V :
Input voltage DC 4.5 ~ 5.5V,output DC 15V±3%
Maximum output : 15V/600MA(See the table below for details)
Input DC 5V 1.00A,Output 15V 0.31A;
Input DC 5V 1.50A,Output 15V 0.45A;
Input DC 5V 2.00A,Output 15V 0.60A;

Output 24V :
Input voltage DC 4.5 ~ 5.5V,output DC 24V±3%
Maximum output : 24V/300MA(See the table below for details)
Input DC 5V 1.00A,Output 24V 0.19A;
Input DC 5V 1.50A,Output 24V 0.27A;
Input DC 5V 1.60A,Output 24V 0.30A;

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
