Voltage	220V

Descripción
Comentarios de clientes(0)

Item specifics

Brand Name Daiertek
Origin CN(Origin)
Certification CE
Current 30A
Features Heavy Duty Rocker Switch
Certification ce
Model Number KCD2-201N-B
Material Copper
Item Type Switches
Warranty 1 Year
Is Smart Device NO
Switch Type Rocker Switch
Item 30A Rocker Switch
Rating 30A 125VAC/250VAC
Contact Type DPST On Off
Part Number KCD4 Rocker Switch
Size 32*25*30.4 MM
Lamp Voltage AC 110V to 250V

Product Description

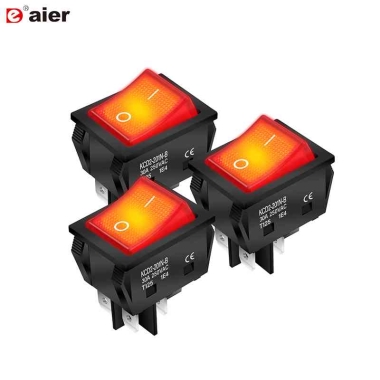

3PCS 30A 250V Heavy Duty KCD4 Rocker Switch ON Off DPST 4 Pin With Red Lighted 220V Toggle Switch Electrical Equipment T125

About this item

【30A Rocker Switch】 It's a Large Current Heavy Duty Rocker Switch, the Switch Rating is 30A 250VAC. So the switch can be used well on 3A, 6A, 10A, 15A, 16A, 20A, 25A, 30A at 120 Volt or 240 Volt.
【Red lighted 120V Rocker Switch】 This Round Rocker Switch with Red Lamp, The input voltage for the lamp of switch should be AC 110V to 250V. The Switch Lamp will light up to indicate the operating status of the device when the switch is turned ON.
【ON OFF DPST Switch】 It's an DPST 4 Pin ON OFF Rocker Switch, Double Pole Single Throw design and T125 Tempature Degree(-25C to +125C).
【Installation】 The KCD2 KCD4 Rocker Switch fits for 30X22mm panel Cut-out size, very easy to install(Snap In flush mount version).
【Application】 It's widely used as Industrial & Scientific Toggle Switch, Fit for most kinds of household appliances such as water dispenser, treadmill, coffee pot and other electronic equipments.

KCD4 Rocker Switch:

Rating: 30A 125VAC/250VAC

Function: DPST 4 PIN ON OFF

Shape: Rectangle Shape, Red Actuator

Lamp Voltage: AC 110V to 250V

Contact Resistance: ≤50 mΩ

Insulated Resistance: ≥ 100 MΩ

Operating Temperature: T125

Electrical Life: ≥10000 Cycles

30 Amp Rocker Switch

30A 250VAC Large Current Heavy Duty Rocker Switch can be used well on 3A, 6A, 10A, 15A, 16A, 20A, 25A, 30A at 120 Volt or 240 Volt.

DPST Rocker Switch

It's a DPST 4 Pin ON/OFF Rocker Switch, Double Pole Single Throw design, and T125 Temperature Degree(-25C to +125C).

220V lighted Rocker Switch

The input voltage for the lamp of the switch should be 110V to 250V. The Switch Lamp will light up to indicate the operating status of the device when the switch is turned ON.
