Item specifics
Product Description

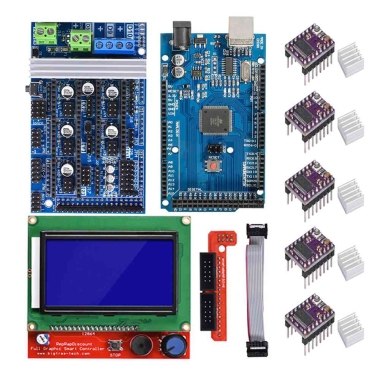

DRV8825 Kit: 1pc Ramps 1.6 +1pc Mega2560 + 1pc 12864LCD + 5pcs Drv8825 Red A4988 kit: 1pc Ramps 1.6 +1pc Mega2560 + 1pc 12864LCD + 5pcs A4988 (Red) Green A4988 kit: 1pc Ramps 1.6 +1pc Mega2560 + 1pc 12864LCD + 5pcs A4988 (Green) About Ramps 1.6 Ramps 1.6 is optimized and launched based on Ramps 1.4 & Ramps 1.5 By Bigtreetech The Struture almost same as Ramps 1.5 , the difference is Ramps 1.6 have new 2pin connectors,which more simple and convenient to connect,also will not be burnt easily,what's more ,Ramps 1.6 have a good Heatsink above MOS tube in order to give a better function to heat dissipation . Beside, the Power of Ramps 1.6 is more larger than Ramps 1.5, the largest power will be up to or 270W , andRamps 1.5 just can be up to 200W, or samller than 200W.
Product Features 1,It can be connected to LCD and other parts.2,There are heater and fan MOSFET outputs and 3 thermistor interfaces3,5A additional security and component protection fusion4,Heated bed controls additional 11A fuses5,Applied to 5 Pololu stepper drive board6,Design of Pololu plate pin socket can be easily replaced or removed for future design7,I2C and SPI pins are available for future expansion8,Servo connectors are used for connecting limit stops, motors and light-emitting diodes.These connectors are gold-plated and have a rated current of 3A, which is very compact.9,The LED will light when the heater has output10,Support 2 motors to connect to ZMega 2560 R3:completely solved the incompatibility of the traditional 2560 board in win7 and win8 system.Retaining the master chip ATMEGA2560-16AU unchanged, replacing the usb chip 16u2, **duino project team launched the use of ATMEGA8U2, ATMEGA16U2 version of the product has its own ideas, in most applications, These USB interface chips are only used as serial port "brush" and communication. With a professional usb chip, it can reduce costs and meet the application well.12864 LCD:The intelligent controller includes an SD card reader, rotary encoders and a 20-character× 4 line LCD display. You can easily connect it to your RAMPS 1.4 board using "smartadapter" included.This panel connect your RAMPS 1.4, you do not need your computer,your SD card intelligent controller power supply. All further operations,such as calibration, the axis movement can be done only with a rotary encoder intelligentcontroller. 3D design print without a computer, just use the G code design stored on the SD card. |
