Motor Type AC Motor
Origin CN(Origin)
Model Number YYAC-3S
Certification NONE
Feature 1 speed controller for ac motor
Feature 2 Multi-application mode
Feature 3 Optocoupler isolated output
Feature 4 Support PWM control
Feature 5 Low power consumption
Feature 6 pwm regulator/pwm controller
Feature 7 speed controller for ac motor
Feature 8 motor speed controller

Product Description

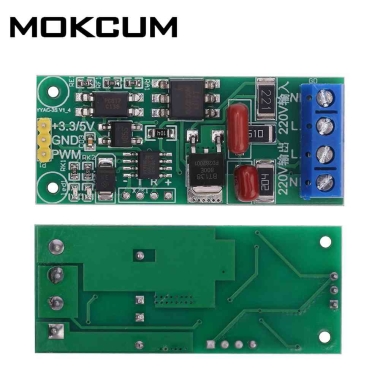

220V PWM Controller PWM Regulator Thyristor Isolation Module Dimming Governor Voltage Regulator Motor Speed Regulation Module

1.Description:Thyristor module is completely isolated from the input and output optocouplers, and can be used safely when the weak current is completely isolated.It uses the I/O port output from MCU to adjust the duty cycle to change the 220V AC voltage to achieve the dimming speed regulation power, etc. 2.Features: 1>.Multi-application mode; 2>.Optocoupler isolated output; 3>.Support PWM control; 4>.Low power consumption; 5>.Small size; 3.Parameters: 1>.Product Name:AC 220V Thyristor Isolation Module 2>.Product Number: YYAC-3S 3>.Control Voltage: DC 3.3V-5.0V 4>.Load Working Voltage: AC 220V 5>.Load Output: AC 220V 6>.Load Current: 3A(Max) 7>.PWM Control Frequency: 1Hz~500Hz 8>.Duty Cycle:0~100% 9>.Working Temperature range:-40°~85° 10>.Working Humidity range:0%-95%RH 11>.Size:56*24*21mm 4.Function: 1>.Light modulator:Change the voltage of the lamp to adjust the brightness of the lamp by adjusting the PWM. 2>.Regulator:Change the duty cycle to change the voltage. 3>.Thermostats:Change the temperature by voltage control heater or cooler. 4>.Motor speed regulation:Change voltage for motor. 5>.Example:Module will output 0V is input 0V low level signal from PWM;Module will output 220V is input 5V high level signal from PWM. 5.Key core code: Such as controlling the brightness of the lamp: While(1) { PWM++; If(PWM==PWM_set) P1^0=0; //The larger the PWM_set, the brighter the light If( PWM>=10) {P1^0=1;PWM=0; } } 6.Using Steps: 1>.Write the complete code according to MCU such as Arduino,Raspberry Pi,AVR,ARM,STM32 and so no. 2>.Connect control power supply 3.3V~5V for module. 3>.Connect Load Working Voltage at ‘N’ and ‘L’. 4>.Connect Load such as lamp or motor. 5>.Connect MCU to get PWM signal. 6>.Turn ON power for module and use module. 7.Note: 1>.Please connect load before PWM adjust; 2>.It is also possible to use a signal generator to control the module, but it must meet the frequency requirements; 3>.Wire cannot be reversed.Otherwise the module will be damaged. 8.Application: 1>.Toy 2>.Intelligent robot control 3>.Smart car 4>.Mechanical control 5>.Adjust the brightness of the lamp 6>.Control motor speed 7>.Adjust the voltage range
