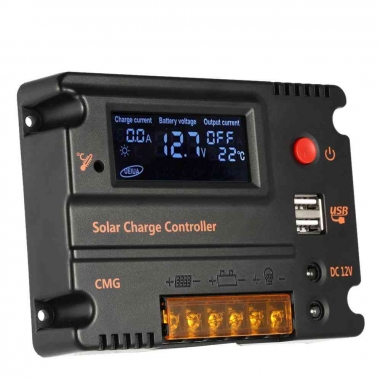

20A Solar Charge Controller Solar Panel Battery Regulator Auto Switch Solar Controller Temperature Compensation 12V/24V

This solar charge controller adopts the advanced digital techniques and operates fully automatically. The PWM battery charging mode can greatly increase the lifetime of your battery and has various unique functions and quite easy to use features.

Features:
LCD screen display all parameters.
With output switch, intelligent control, easy to operate.
Fully automatic operation.
Microcontroller digital accuracy.
A key to open and close the load.
PWM charging mode(SOC).
With separated temperature detected circuit, high precision temperature compensation function.
DC 12V and USB 5V charging for DC lamp and phone.

Protection:
Overload protection;
Short-circuit protection;
Lighting protection;
Under-voltage protection;
Over-charging protection;
Reverse polarity protection.

Specifications:
Color: Black
Material: Plastic
Voltage of Battery: 12V / 24V Automatic
Rated Charge/Discharge Current: 20A
USB Output Voltage: 5V
Total USB Output Current: 3A
DC Output Voltage: 12V
Total DC Output Current: 2A
Overload/Short Circuit Protection: 1.5 Times by Rated Current
Short Circuit Recovery Time: 10s
Open Circuit Voltage of Solar Panel: 40V
No Load Loss: 0.05W
Over Voltage Protection: 15V; x2/24V
Float Charge Voltage: 14V; x2/24V
Discharge Recovery Voltage: 12V; x2/24V
Over Discharge Voltage: 10.5V; x2/24V
Control Mode: Software Intelligent Control
Working Temperature: -35~55°C
Item Size: 135 * 100 * 25mm / 5.31 * 3.94 * 0.98in (L * W * H)
Item Weight: 222g / 7.83oz
Package Size: 14.5 * 12 * 3.8cm / 5.7 * 4.72 * 1.5in (L * W * H)
Package Weight: 270g / 9.54oz

Package List:
1 * Solar Charge Controller
2 * DC Cable
1 * User Manual(English)
